The Frame-Watt® system, available in 3.6 or 4.3 kWc versions, is a kit that can be installed on portakabins, shipping containers or worksites. It enables autonomous energy production, thus supplying the portakabin with power
The Frame-Watt® is a platform that can be fitted on top of containers or worksite portakabins.
A crank is used to deploy the modules from the ground using a “scissor” mechanism. It has the advantage of having a small wind surface area, and can be folded away in adverse weather conditions. The modules are East-West facing, ensuring optimum solar capture.

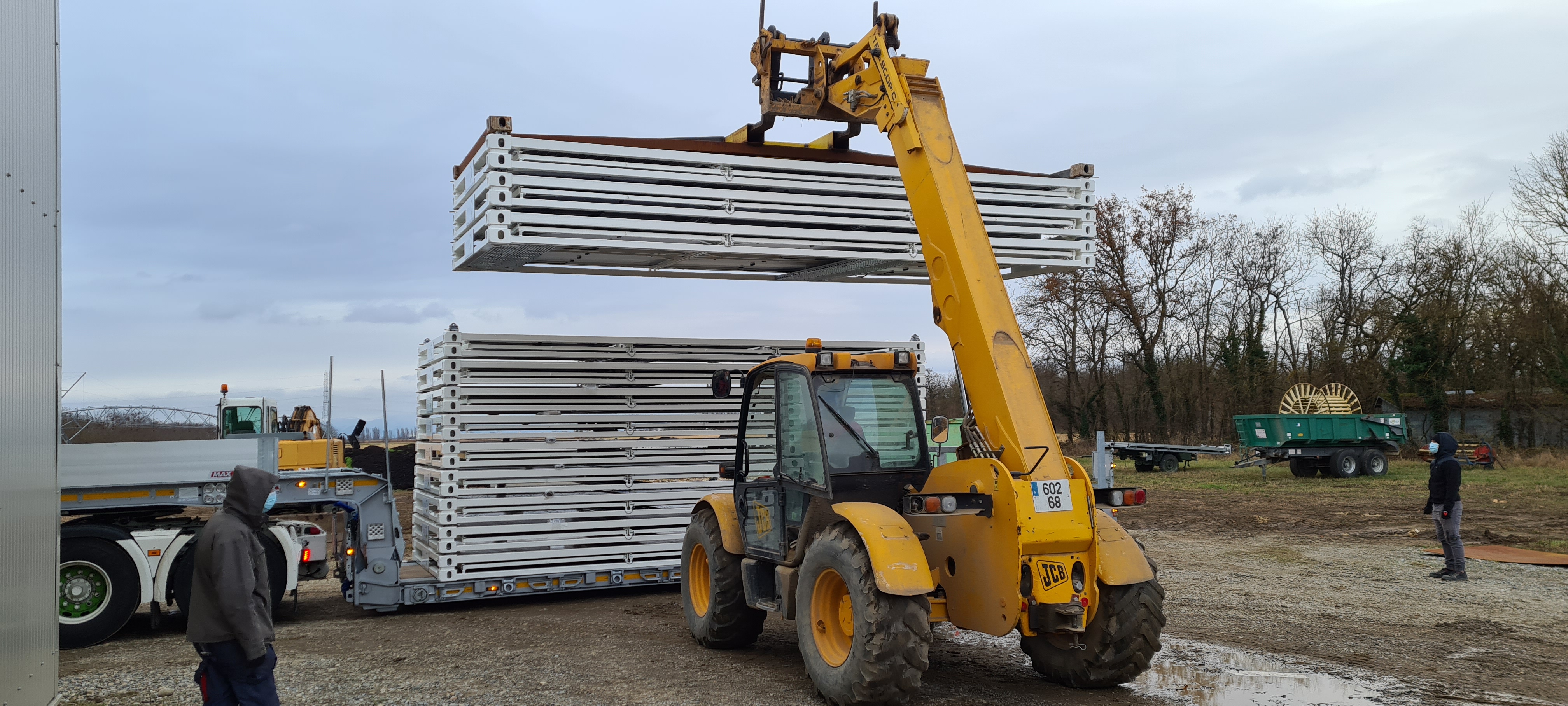

The systems can be stacked on top of each other (up to 8 units), thus optimising transport. The system can also be transported on the 20 foot container (“Twist-lock” locking) - in High Cube mode.
Dimensions of the deployed photovoltaic unit
| Length (mm) | 6060 |
| Width (mm) | 2440 |
| Height (mm) | 290 |
Electrical specifications
Photovoltaic system
| PV module technology | Crystalline |
| Numbers of modules | 12 – can be deployed using a crank in “scissor” mode |
| Module power | 300 to 360 Wc |
| Total power | 3.6 or 4.3 kWc |
| Inverter | |
| Technology used | Sunny Boy |
| Micro-inverter | AE INV 500-90 |
The Frame-Watt® is ideal for modular worksite portakabins or containers (including refrigerated containers).
Humanitarian, Ecotourism, Mobile worksites, Military, Telecommunications, Agriculture, Rural electrification, Energy producers, Mining, Events, Service stations, Base camps / site facilities, Waste and water processing, Island areas, Crisis situations
